Baubeschreibung Boeing 727

Building a Boeing 727



Teil 1:  Rumpfheck

Part 1: Tail section

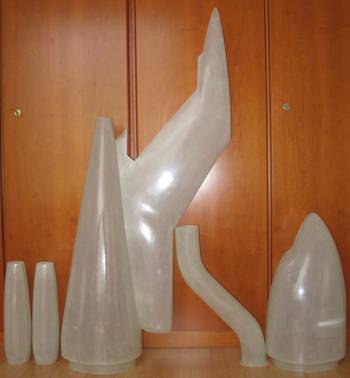

Die GfK-Teile – Fiberglass parts                                    Turbinenhalterung  -  Engine mount

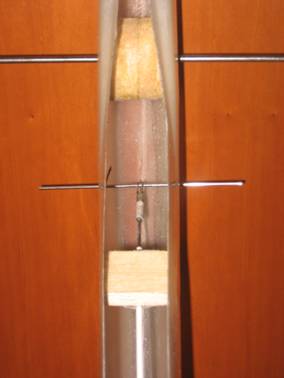

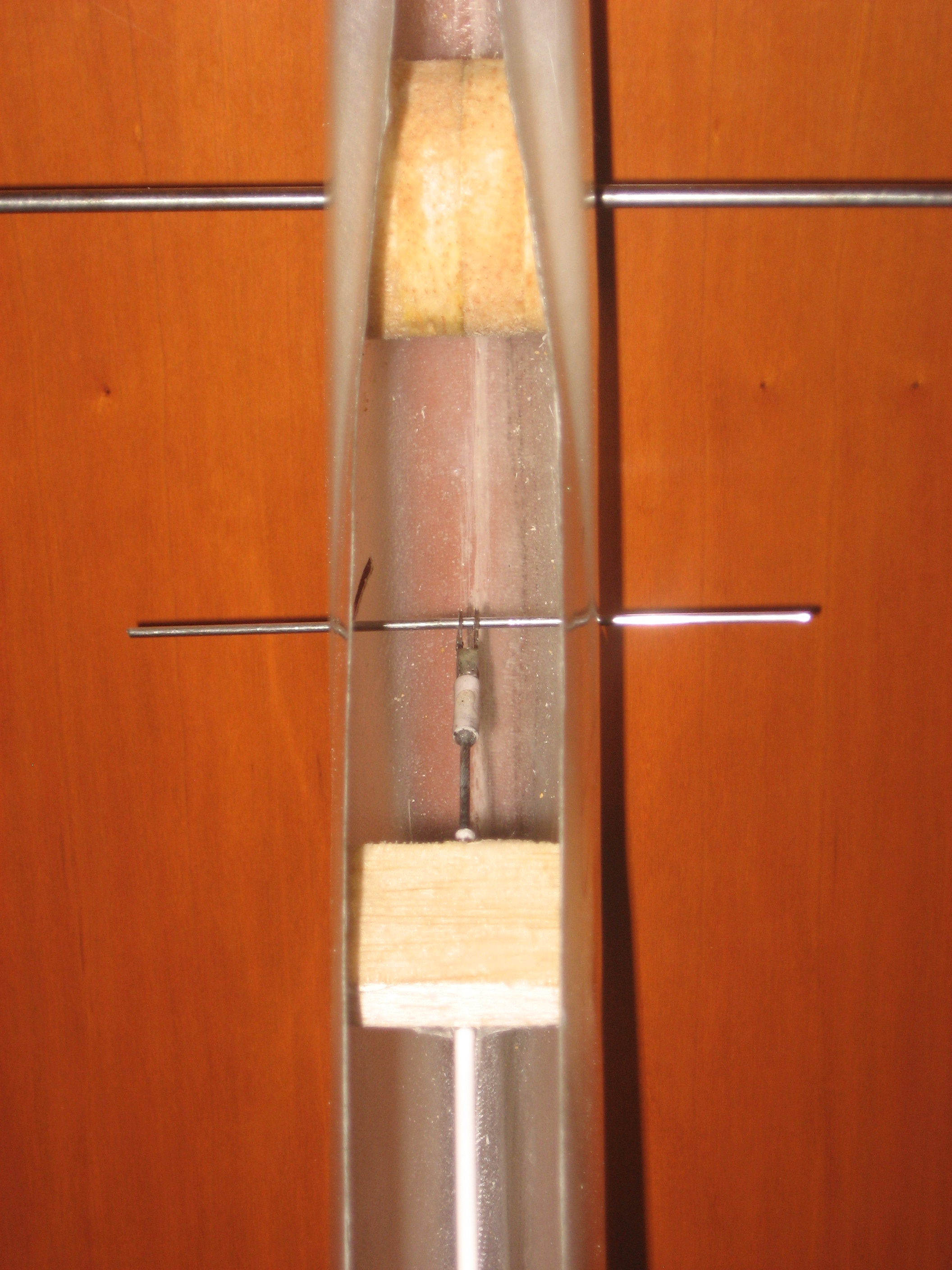

Höhenruderanlenkung – actuator of the all-moving stabilizer





Halterung der seitlichen Triebwerksgondeln vor und nach dem Einbau

Pylon for the engine nacelles before and after installation





Luftkanal vor und nach dem Einbau – Airduct before and after installation

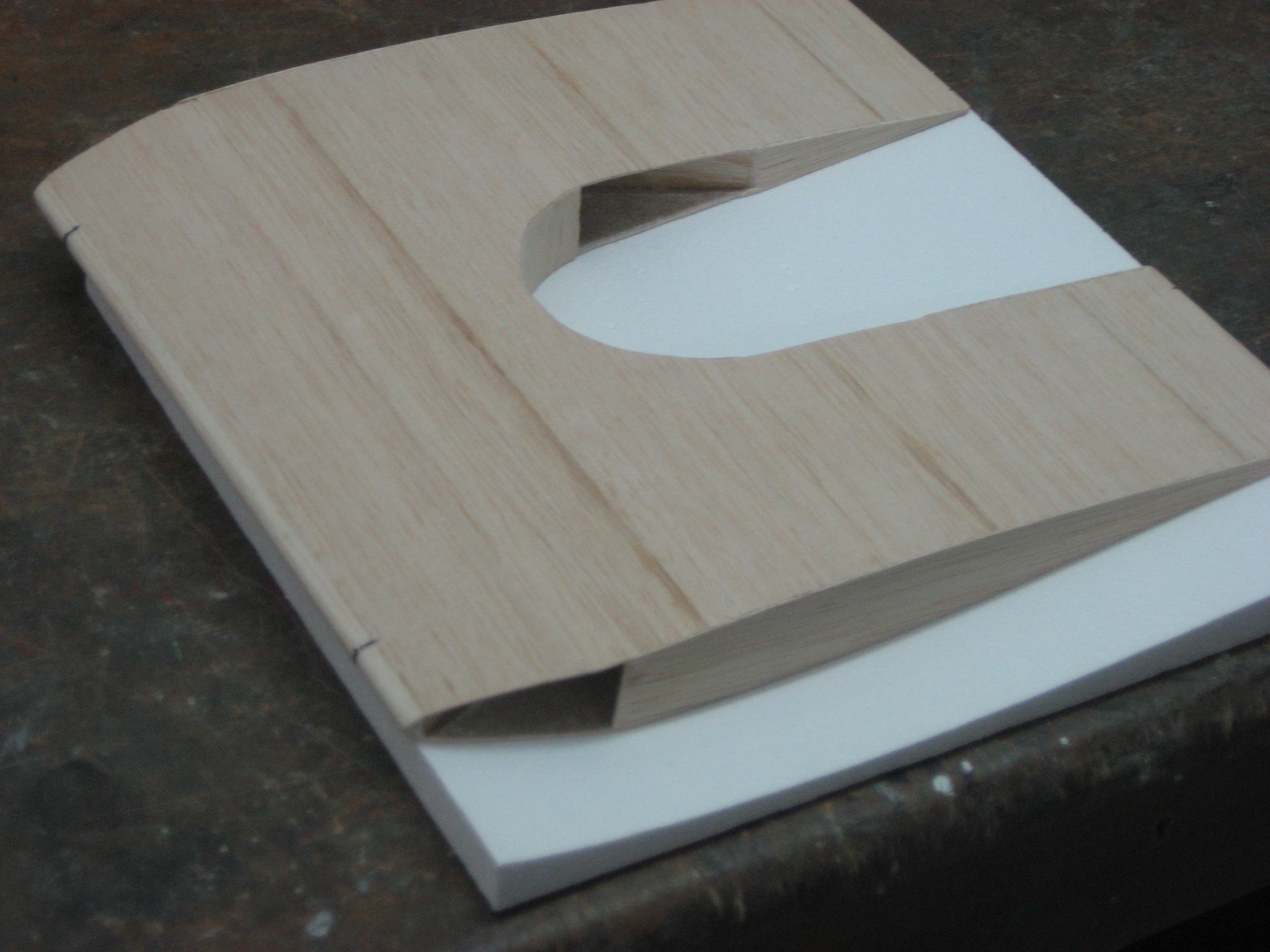

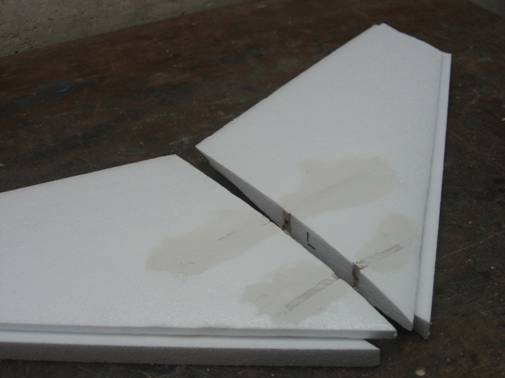

Das Höhenleitwerk wird zum Beplanken mit 1mm Balsa vorbereitet

Preparing the horizontal stabilizer for covering with balsa (1mm thickness)

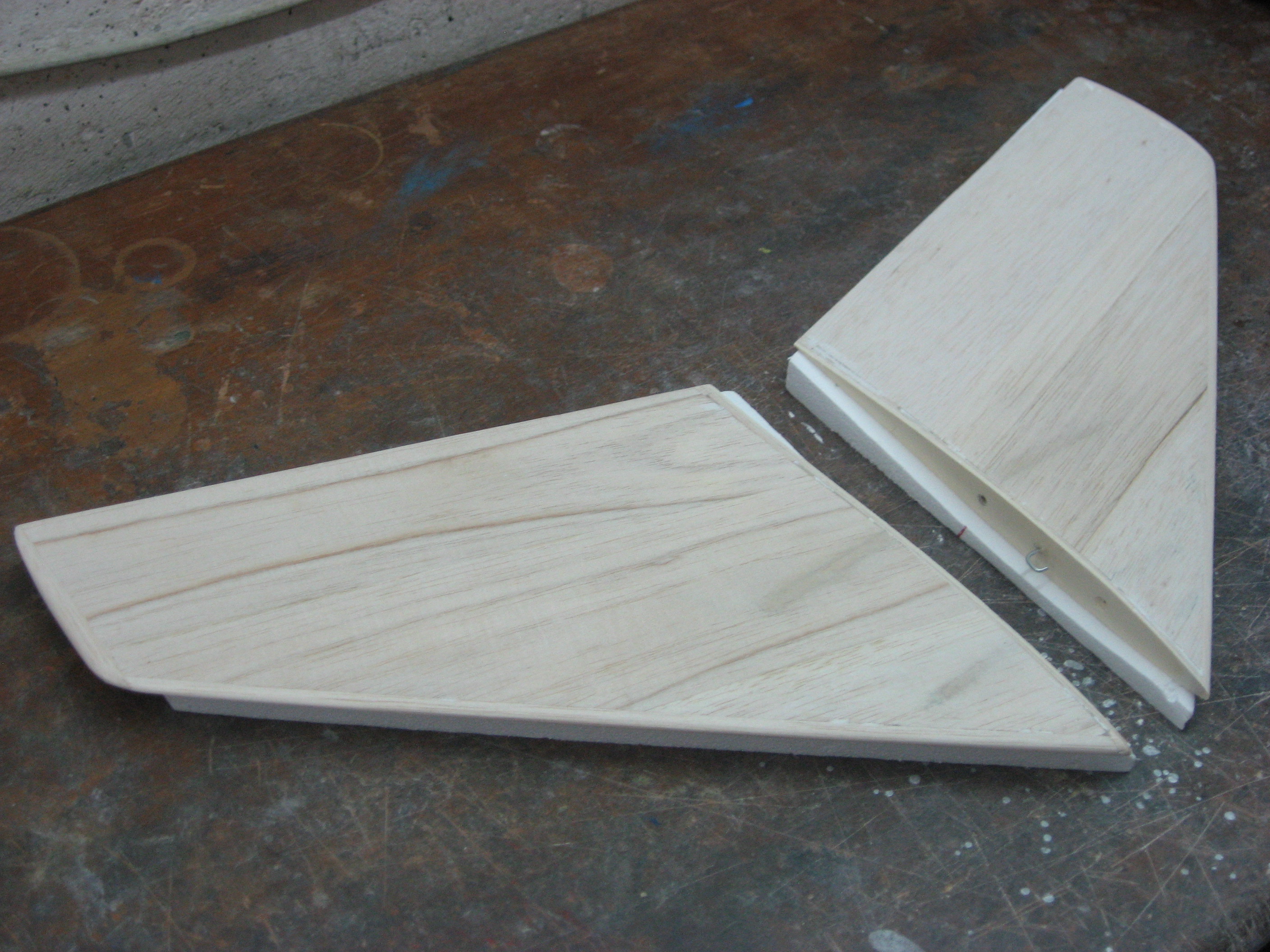

                   Höhenleitwerk fertig                                                      Bau des Seitenruders

                  Stabilizer completed                                                        Building the rudder

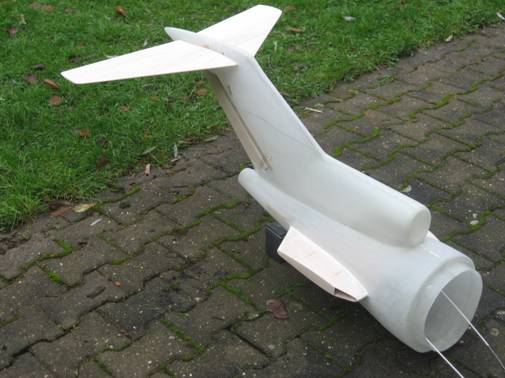

       Einbau des Schubrohrs                                                      Rumpfheck fertig zur Endmontage

      Installation of the tailpipe                                                   Tail section ready for final assembly



Teil 2 - Part 2

Teil 3 - Part 3

Teil 4 - Part 4

Teil 5 – Part 5
