Baubeschreibung Airbus A340
Building an Airbus A340
Teil 2: Flügel
Part 2: Wings

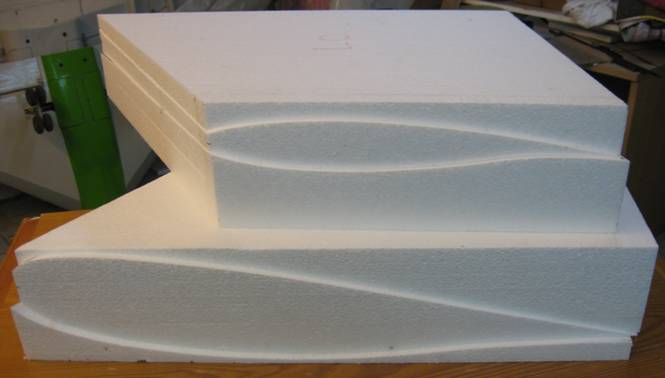

An den Styroporkernen des
Innenflügels sind die charakteristischen Profile und die Verwindung erkennbar
Typical airfoils and washout are clearly visible at the foam cores of
the inner wing segments

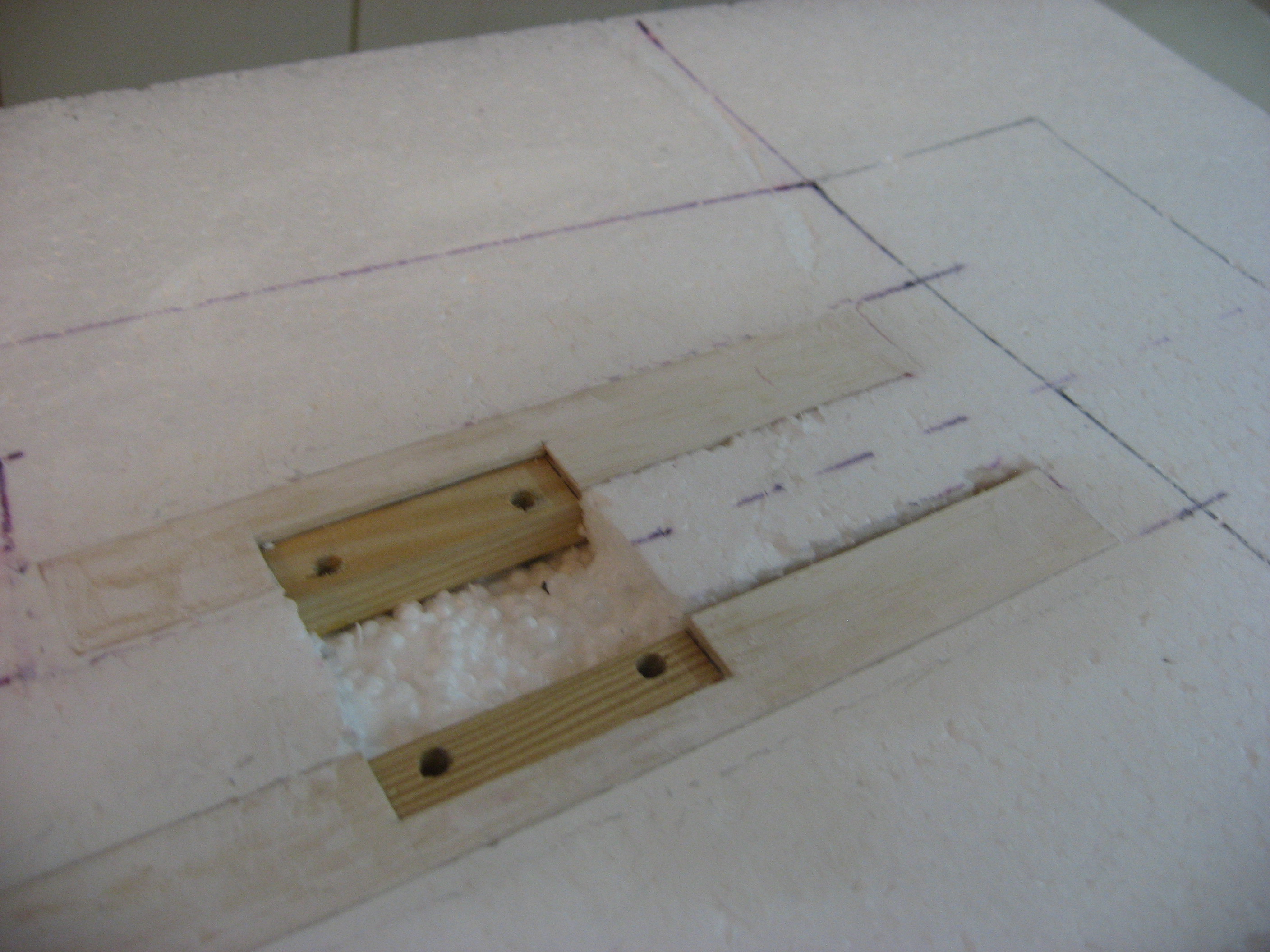

Erstes Flügelsegment:
Fahrwerksbefestigungsleisten
First wing segment: Main landing gear mounting ledges

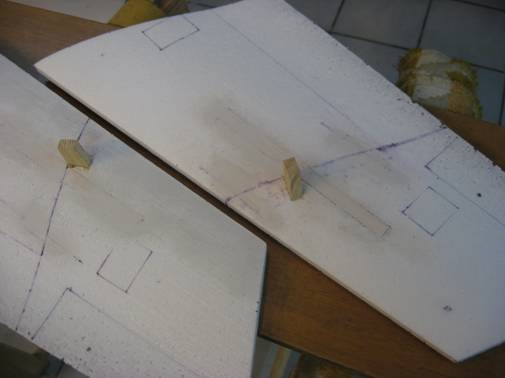

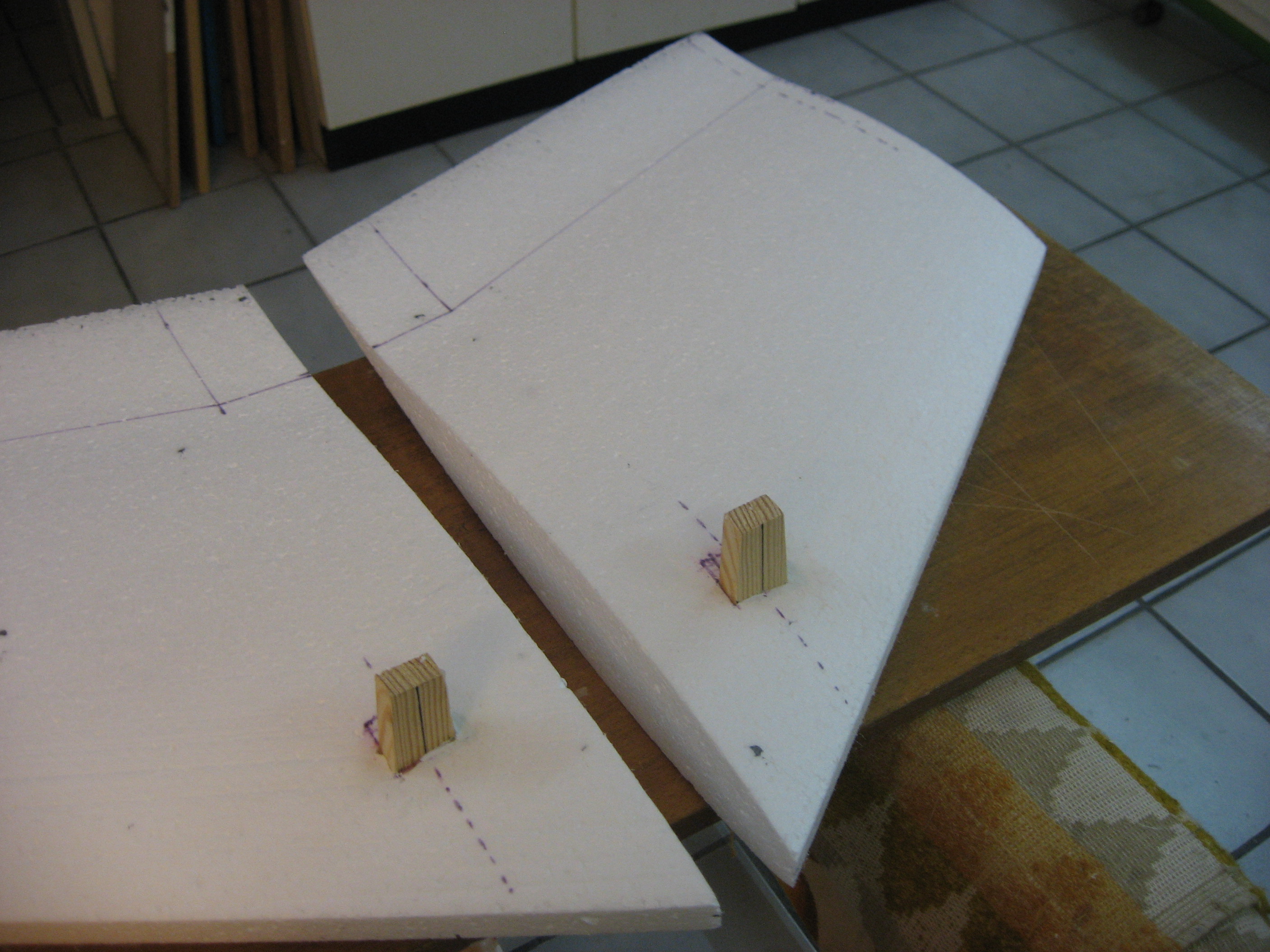

Zweites Flügelsegment:
Halterung für innere Triebwerksgondel
Second wing segment: Mounting support for the inboard nacelle
Drittes Flügelsegment:
Halterung für äußere Triebwerksgondel
Steckungsrohre für abnehmbare Außenflügel eingebaut
Third wing segment: Mounting support for the outboard nacelle
Connecting tubes built in for the removable outboard wing

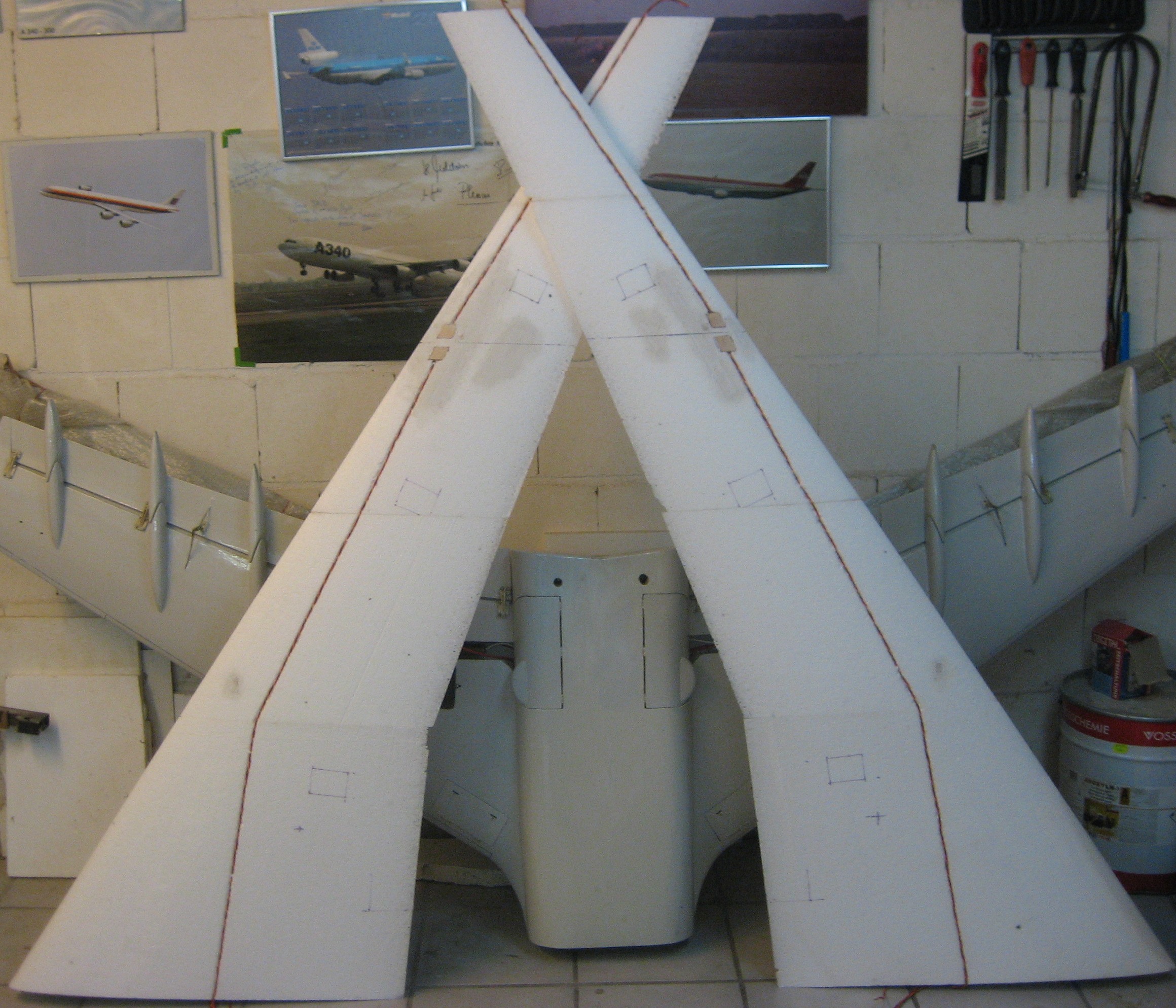

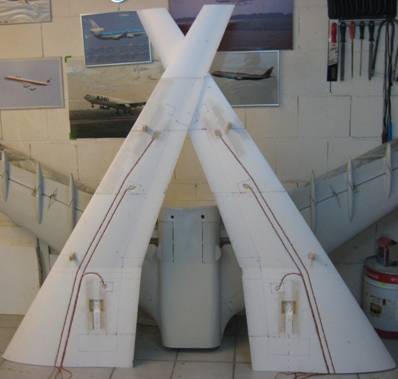

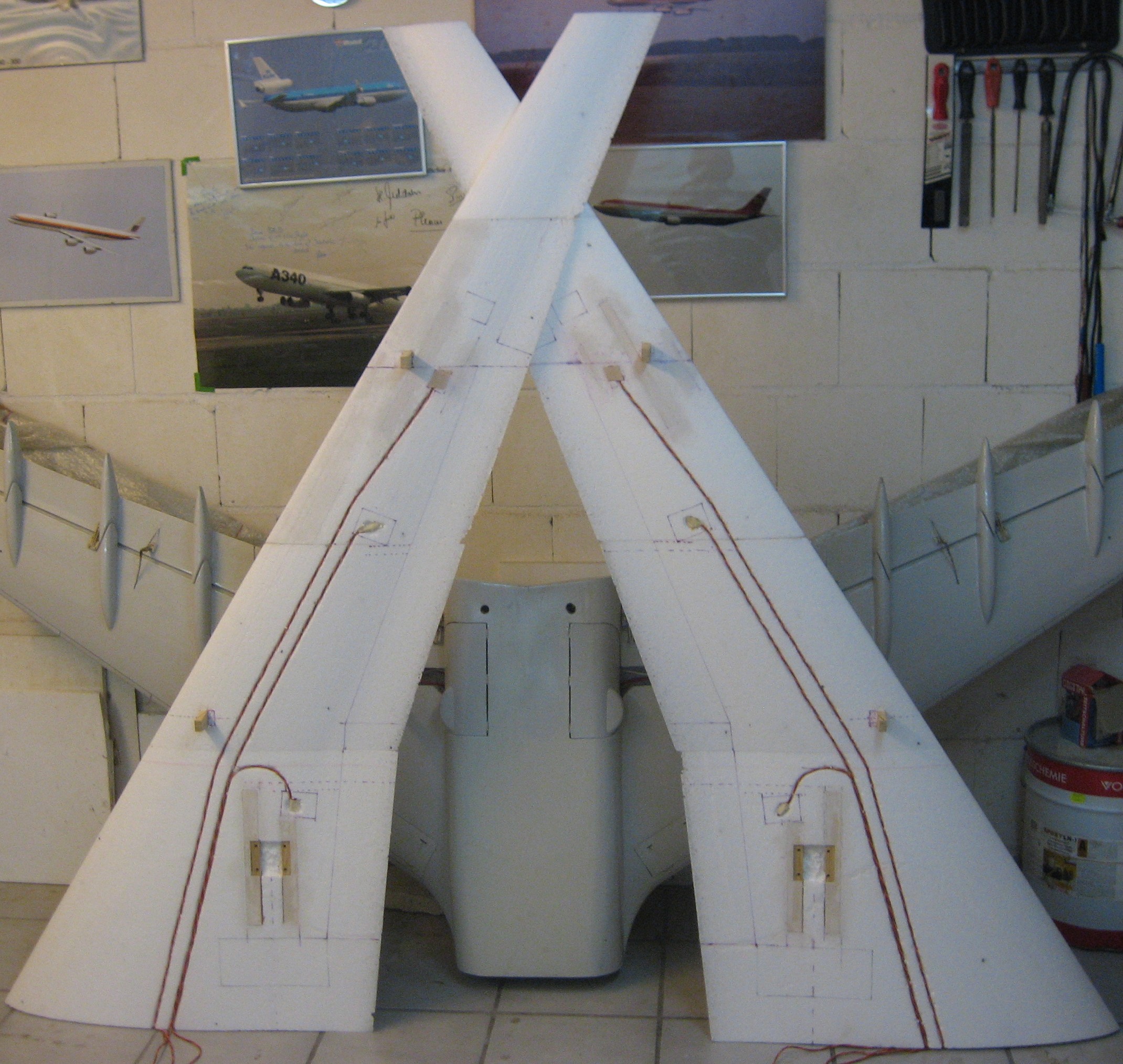

Alle vier Segmente
zusammengeklebt. Litze für Servos und Beleuchtung verlegt
All four segments glued together. Wiring for servos and wingtip lights
applied

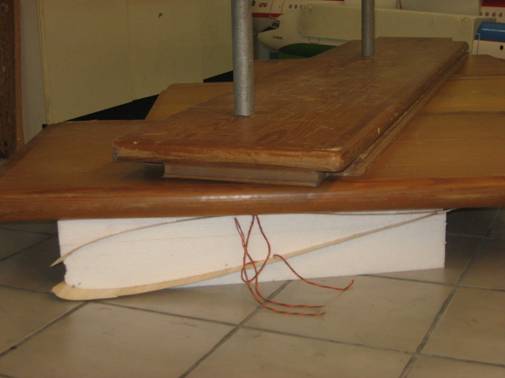

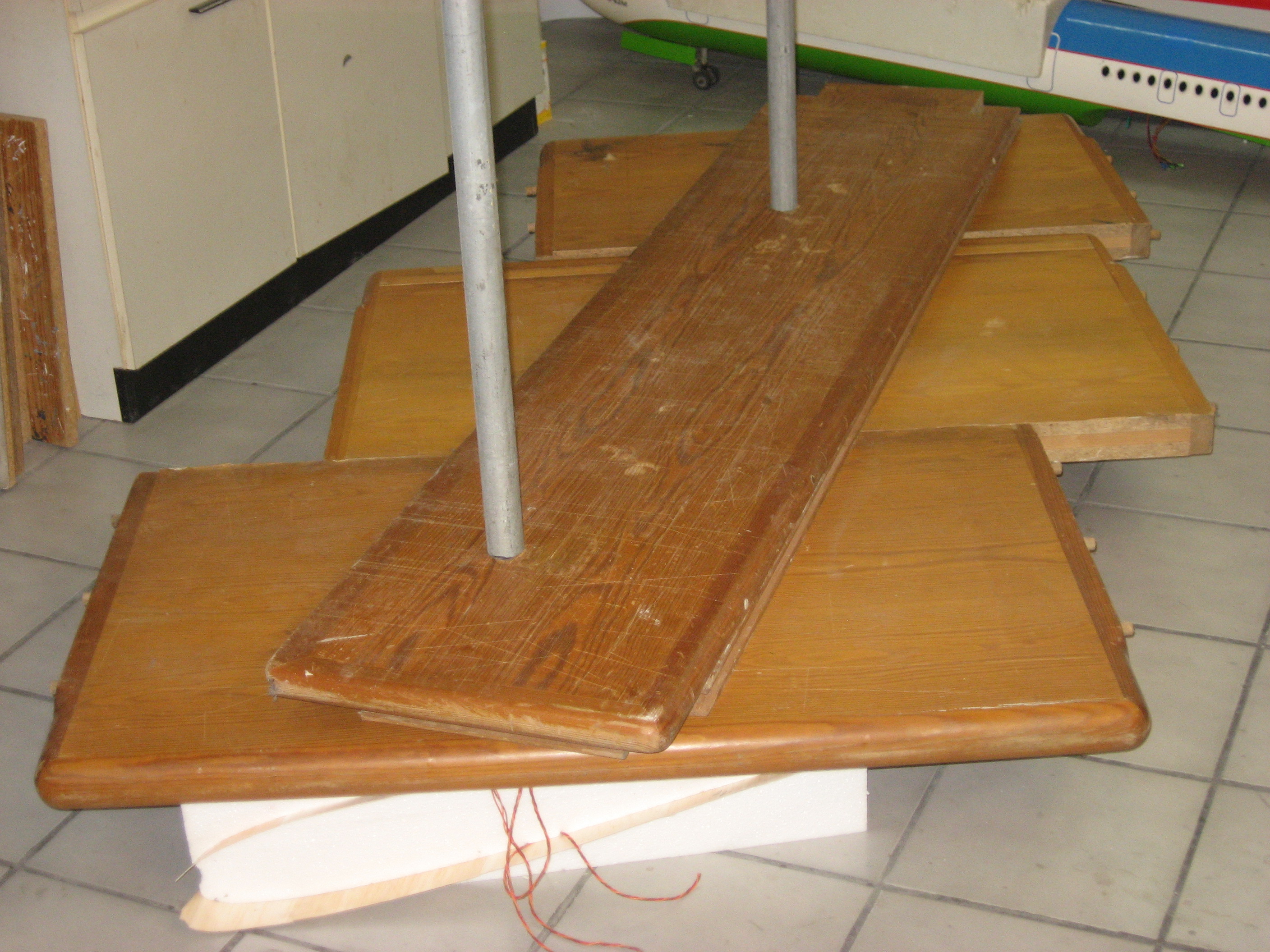

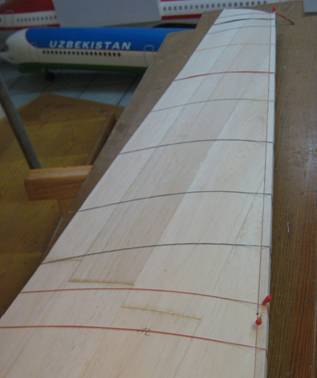

Beplanken der Flügelkerne
mit 1 mm Balsa unter Verwendung von Epoxy
Glueing 1 mm Balsa onto the foam cores using epoxy

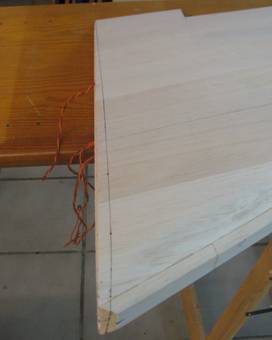

Nasenleiste und Randbogen
angebracht

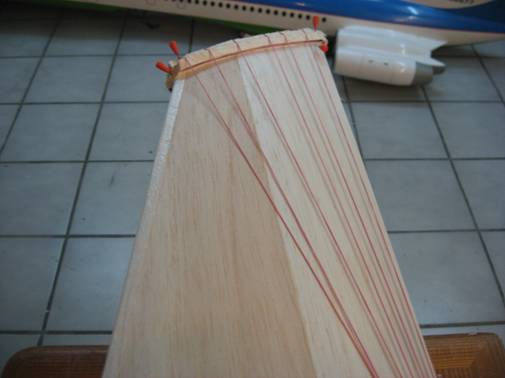

Leading edge and wingtip
applied

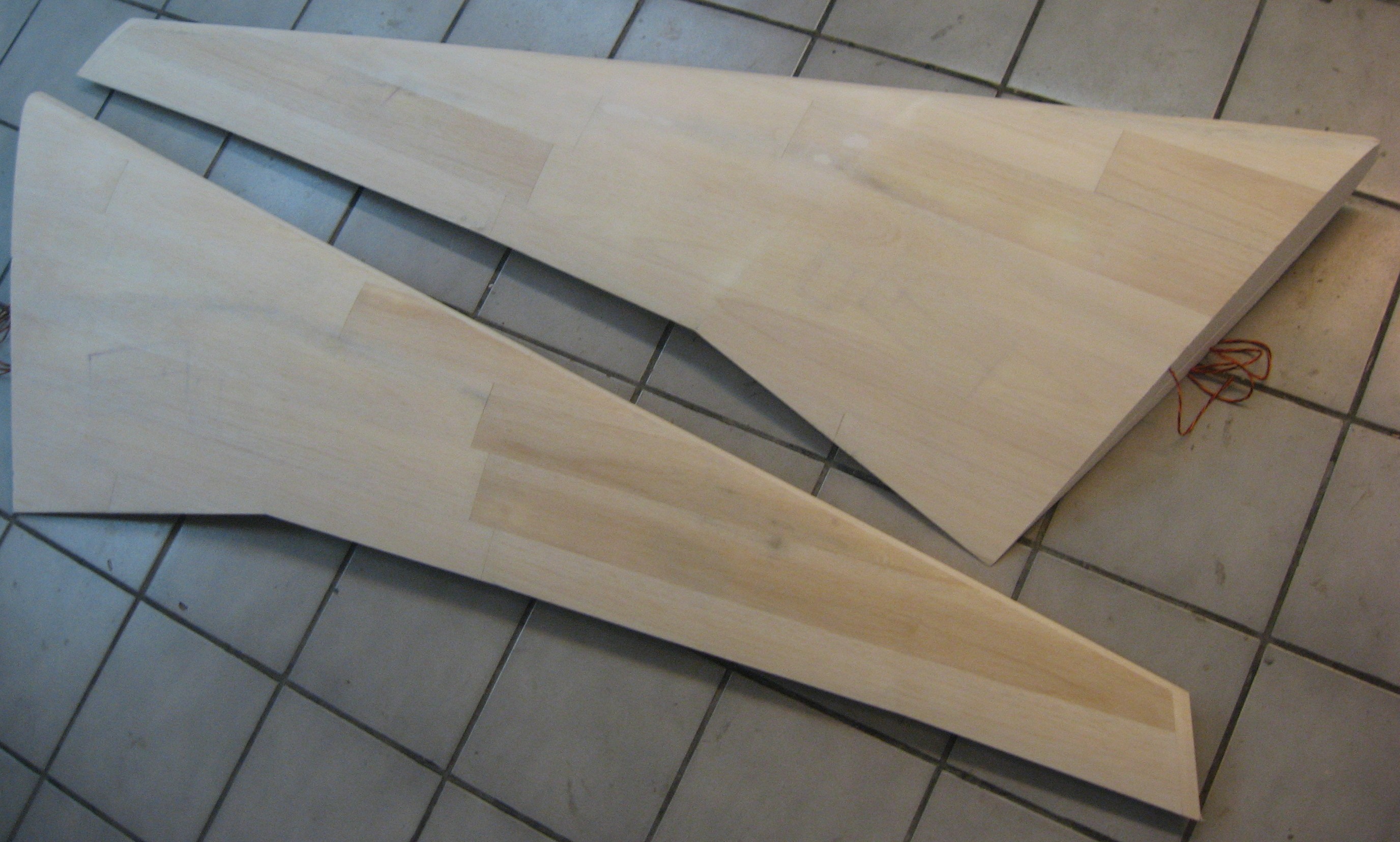

Flügel verschliffen
Wings sanded

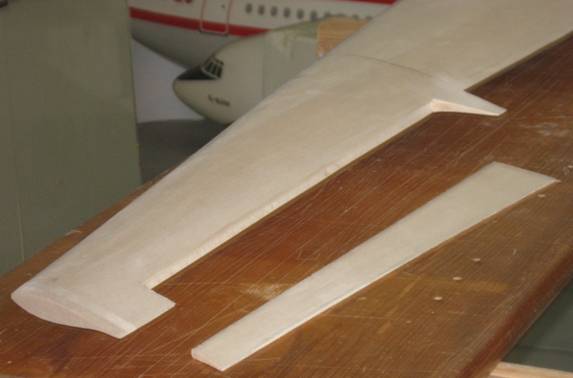

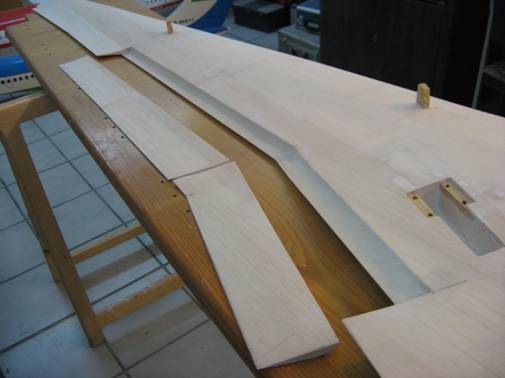

Landeklappen
ausgeschnitten
Flaps cut out

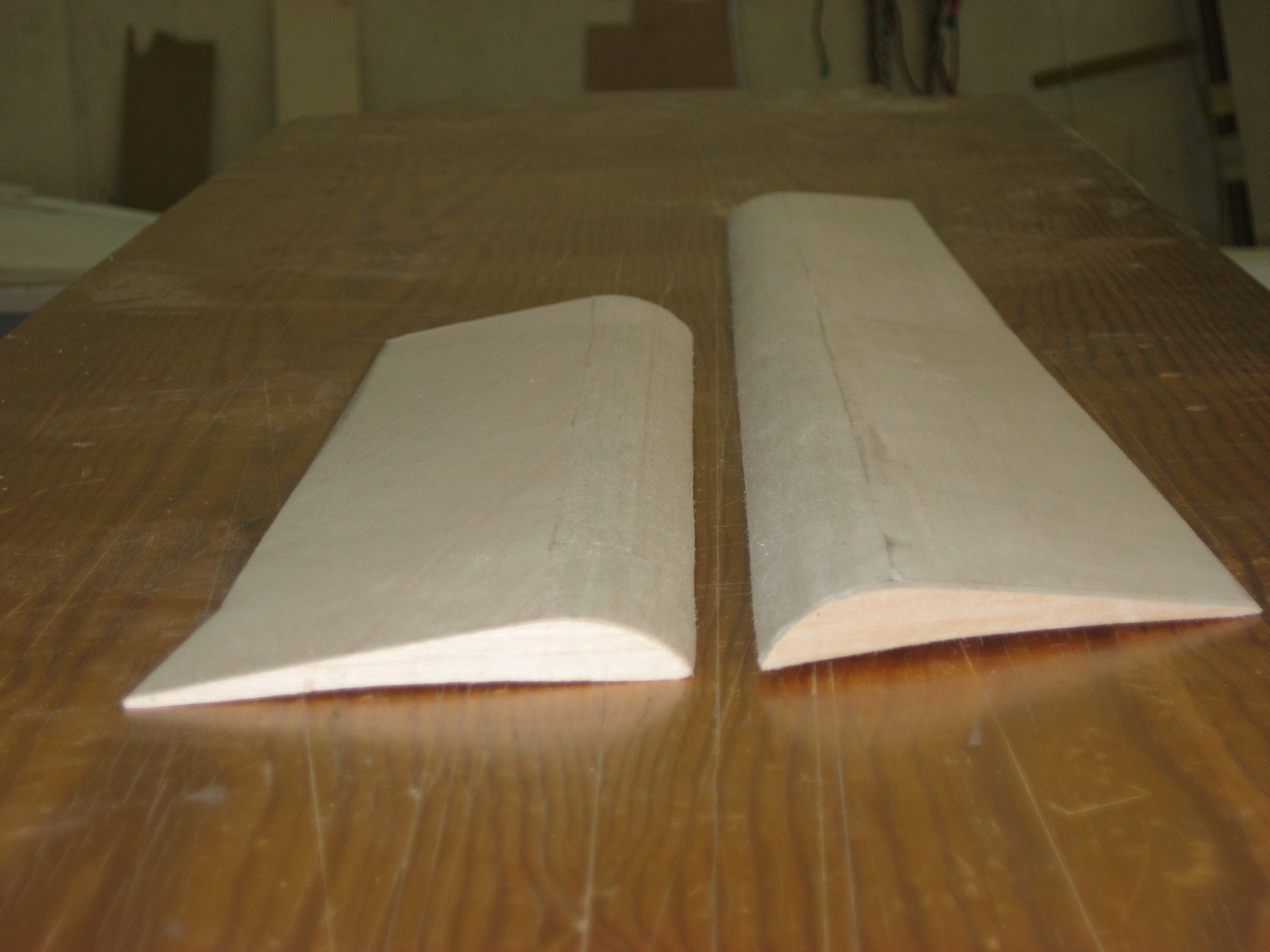

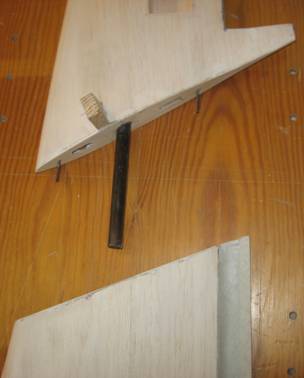

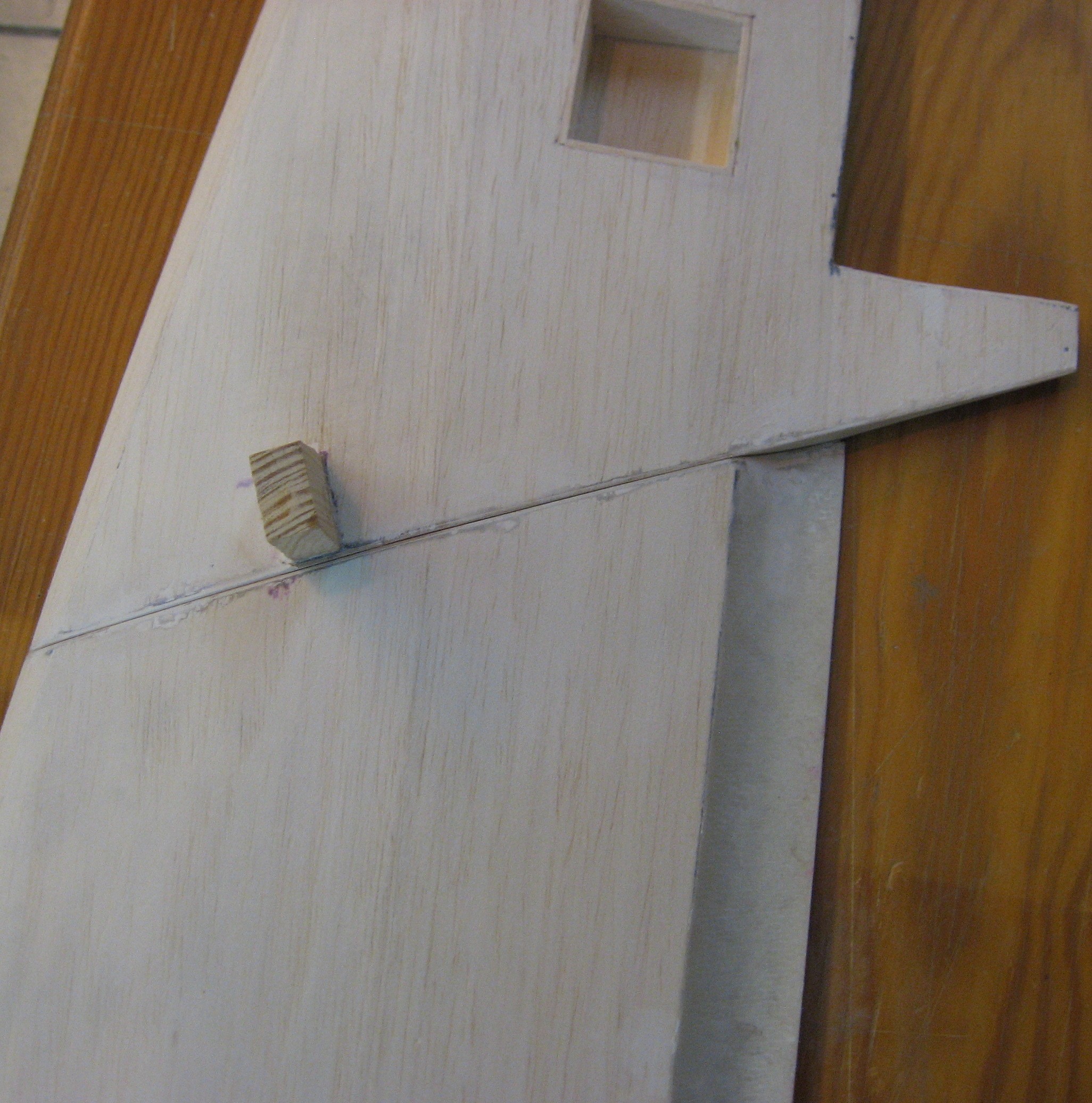

Querruder
Aileron

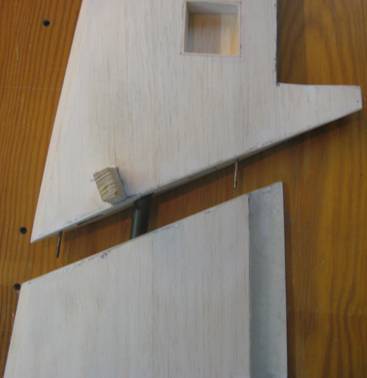

Abnehmbare Außenflügel
Removable outer wing section

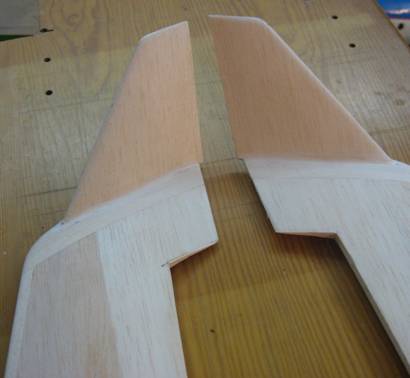

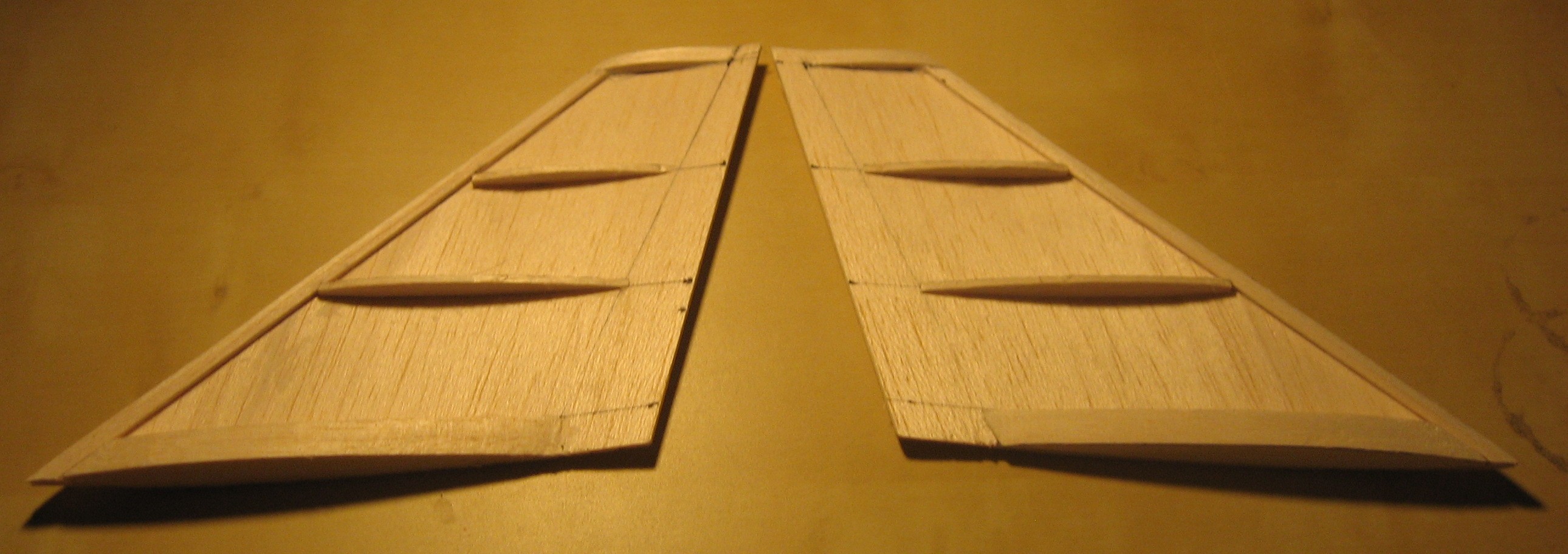

Winglets im Bau …
Winglets being built …

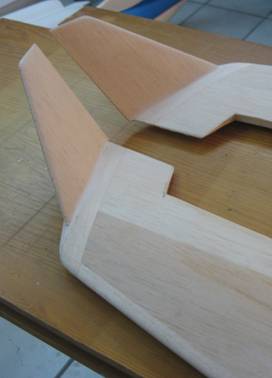

… und am Flügel angebracht
… and glued to the wingtip

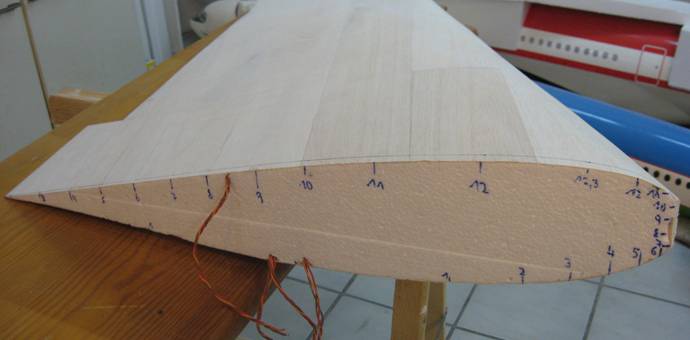

Für 5,2° V-Form muss an
den Flügelwurzeln pro 11 mm Profilhöhe je 1 mm abgeschliffen werden
To achieve a dihedral of 5.2 degrees 1 mm has to be sanded away on every
11 mm wing root height

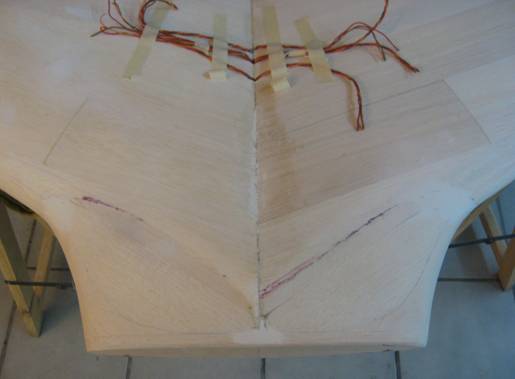

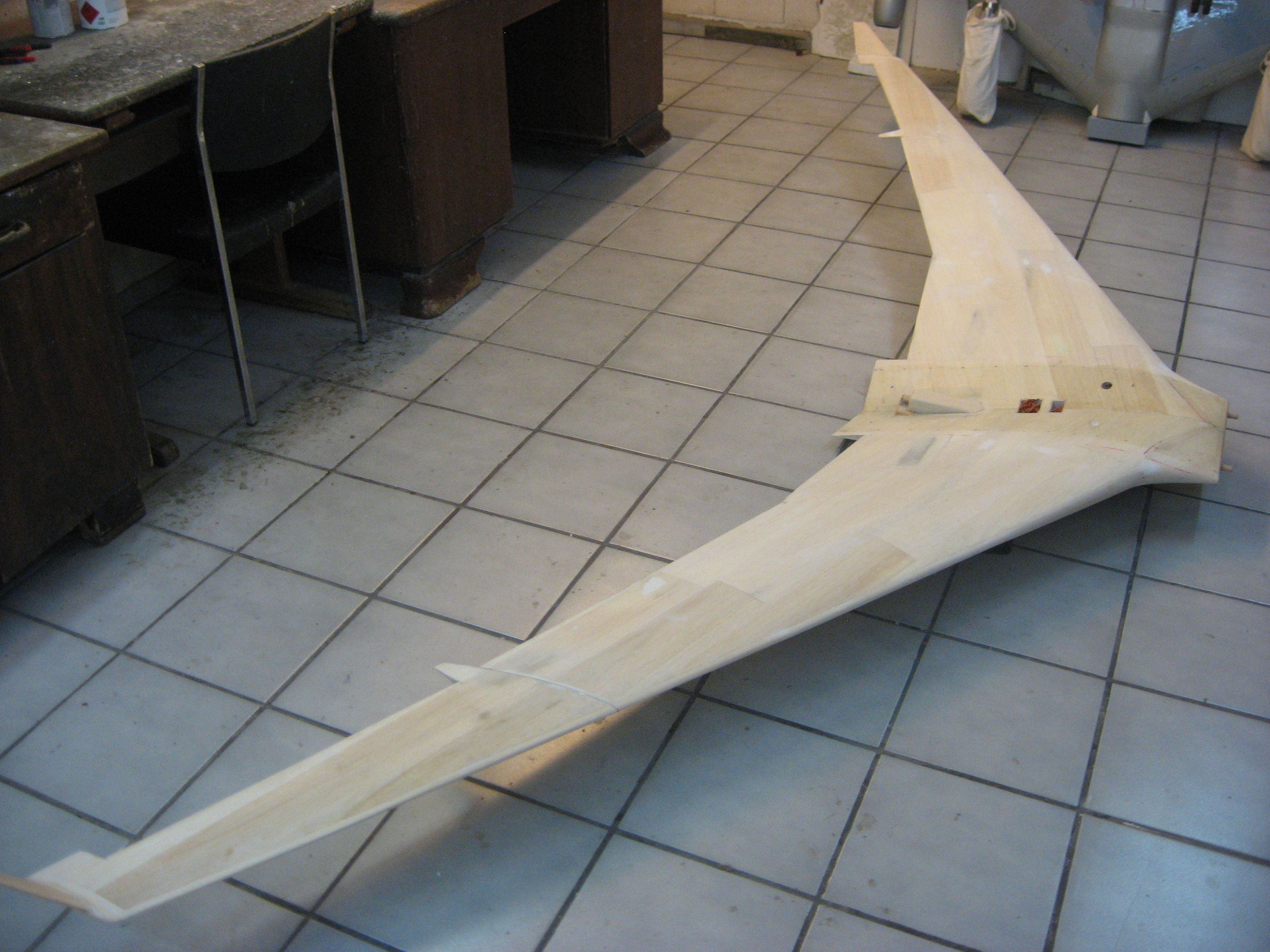

Hauptflügel verklebt
Main wings glued together

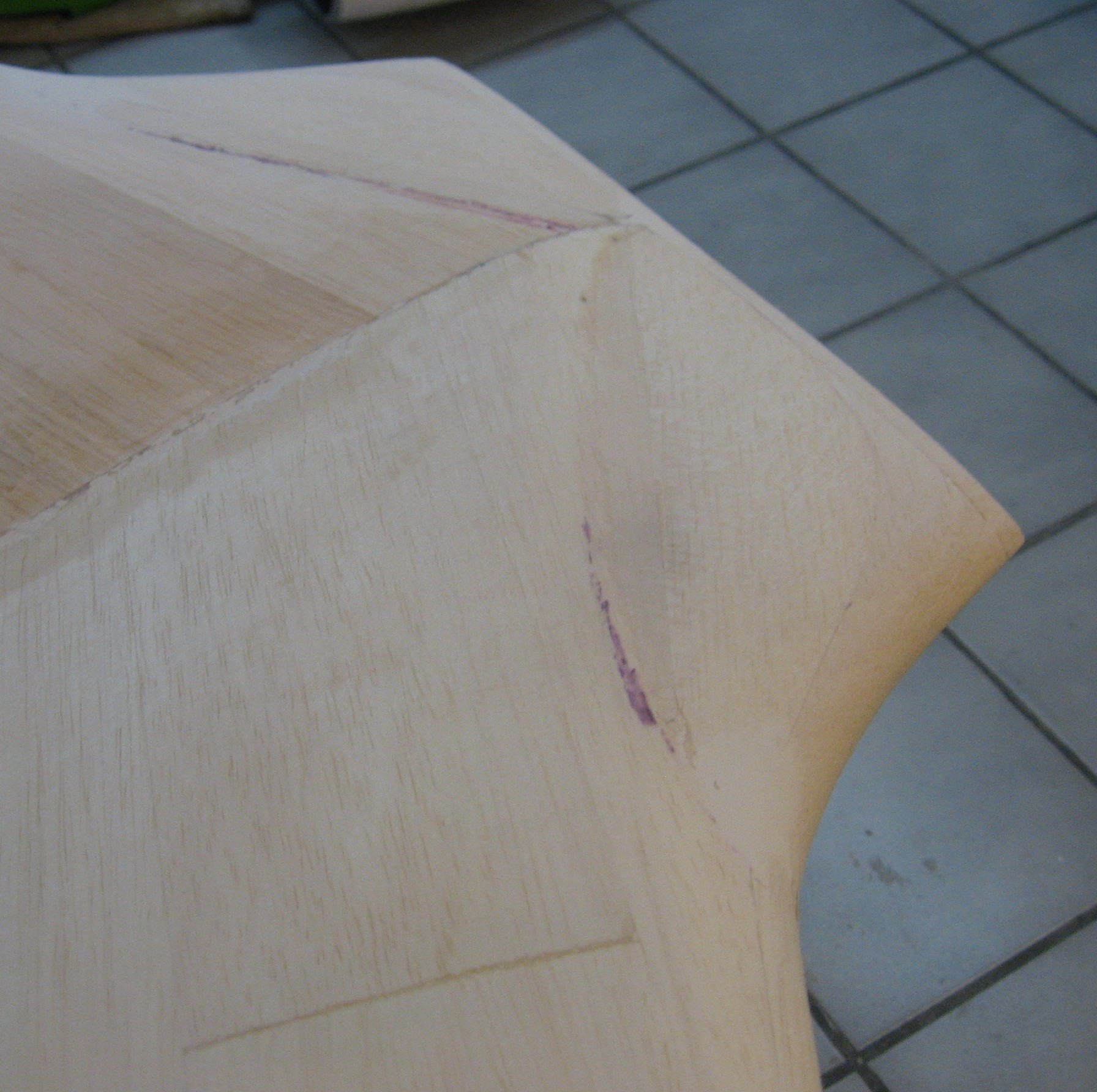

Übergang von der
Flügelvorderkante zum Rumpf
Fairing from the wing’s leading edge to the fuselage

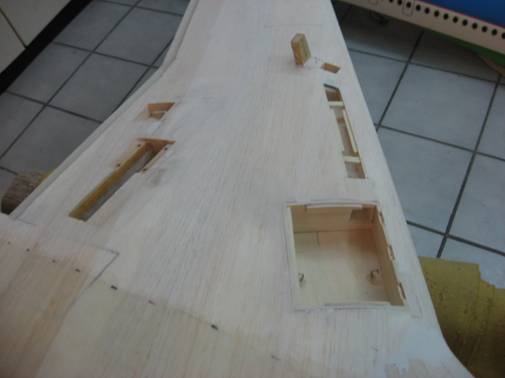

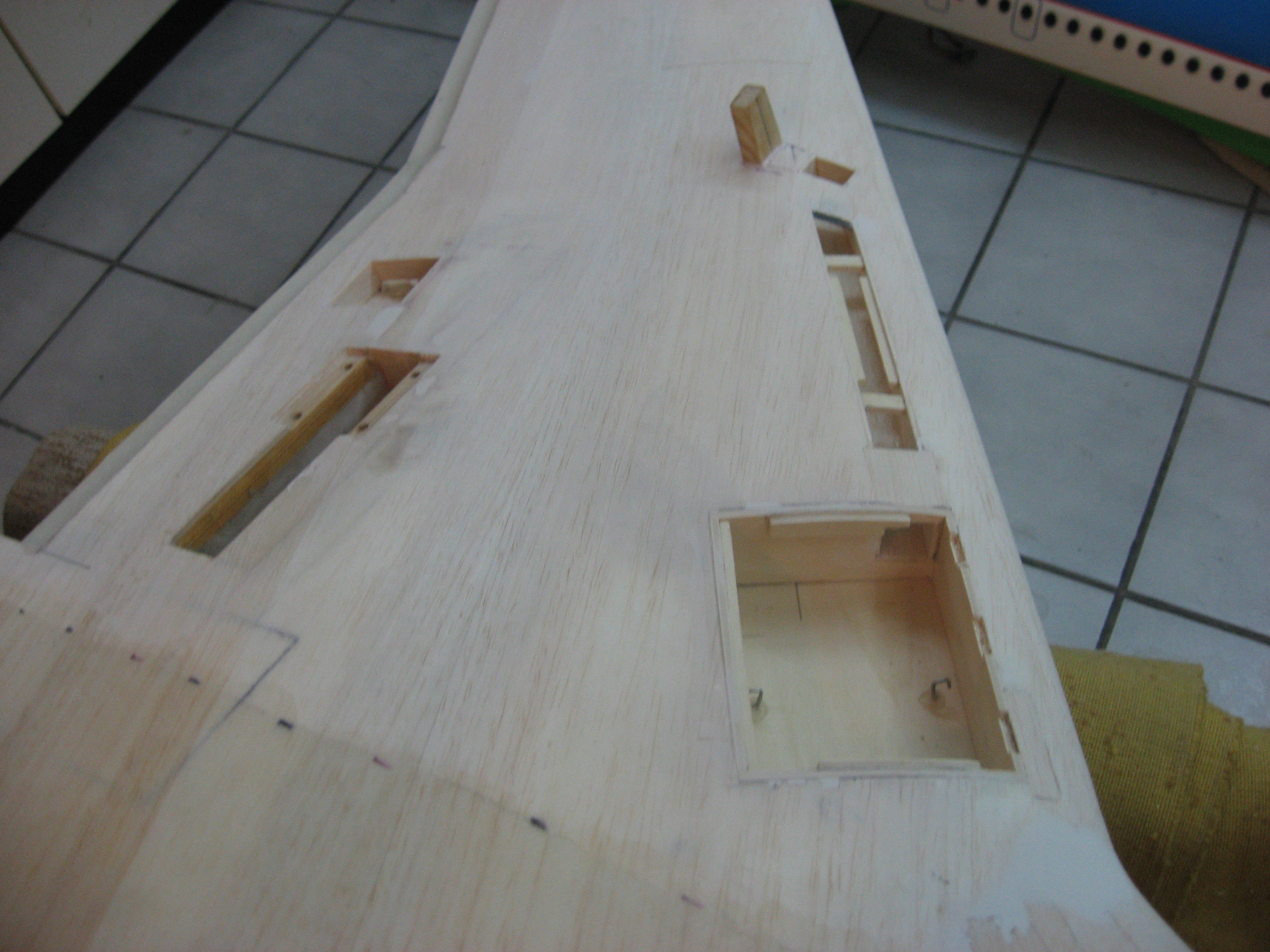

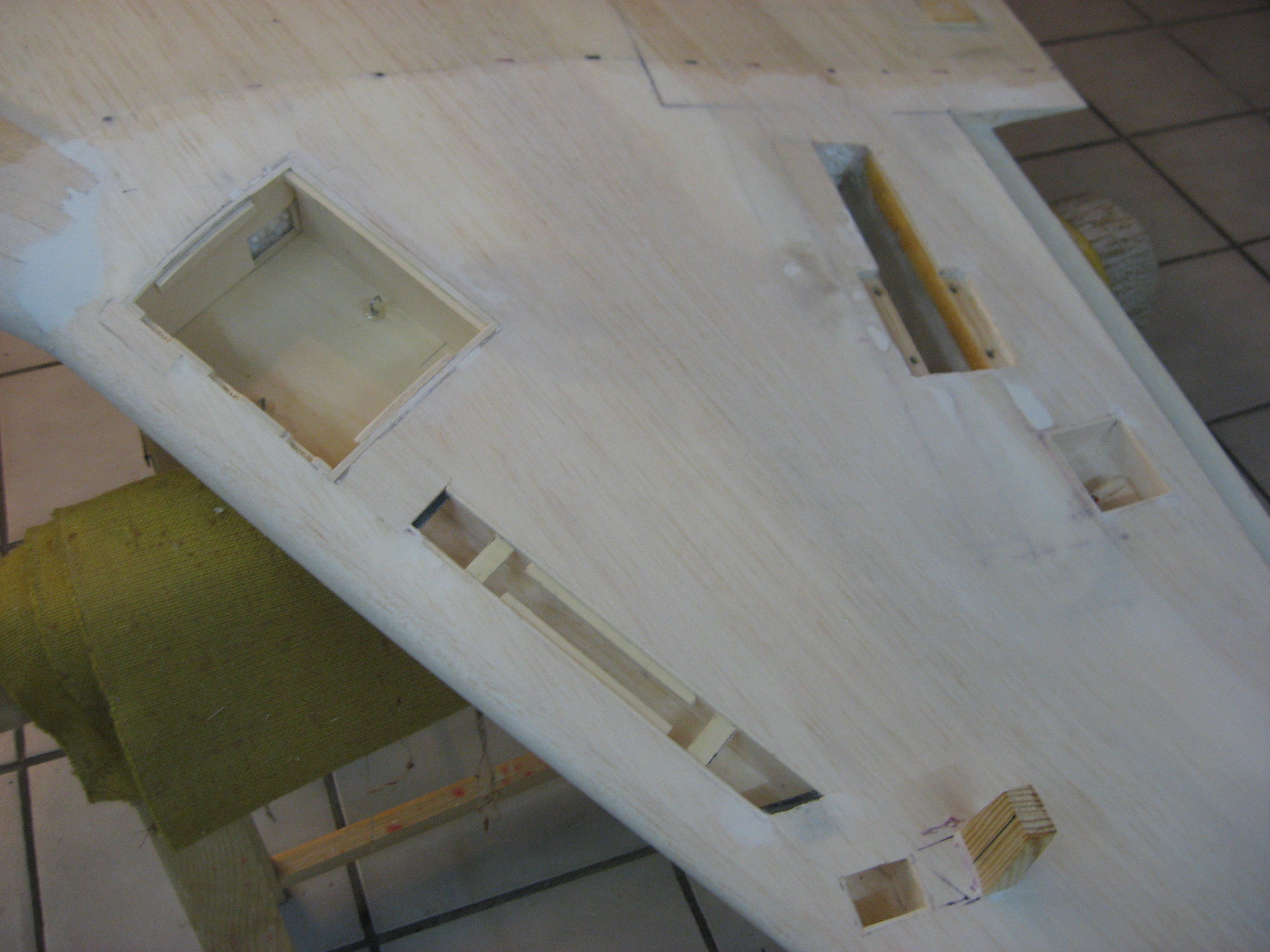

Fach für die
Turbinenelektronik
Compartement for the
turbine’s ECU

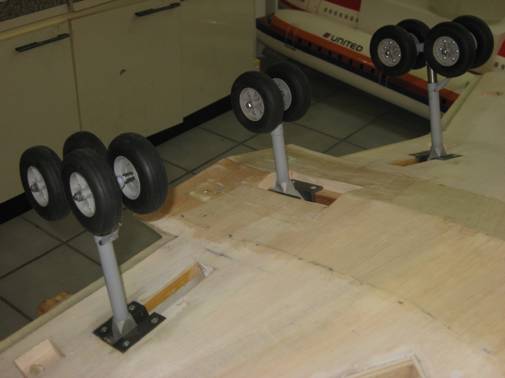

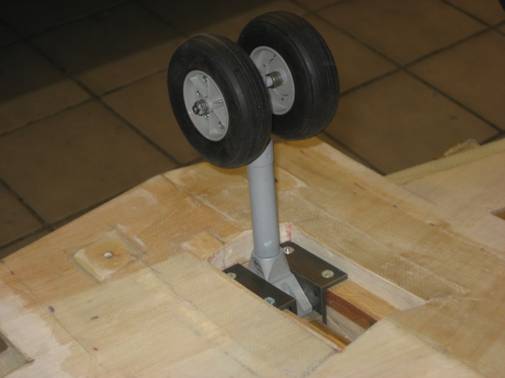

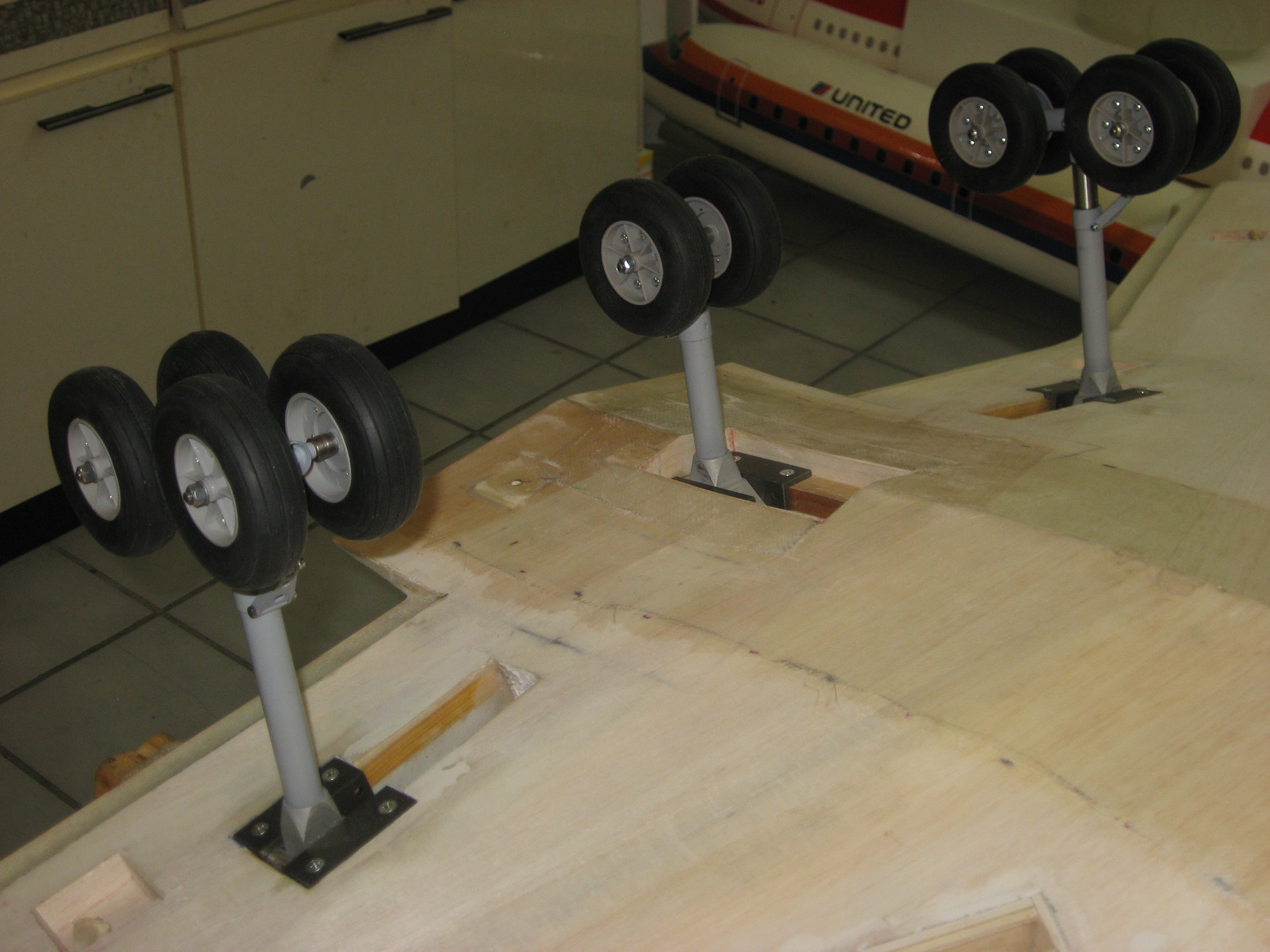

Zentrales Hauptfahrwerk
eingebaut
Center main gear installed

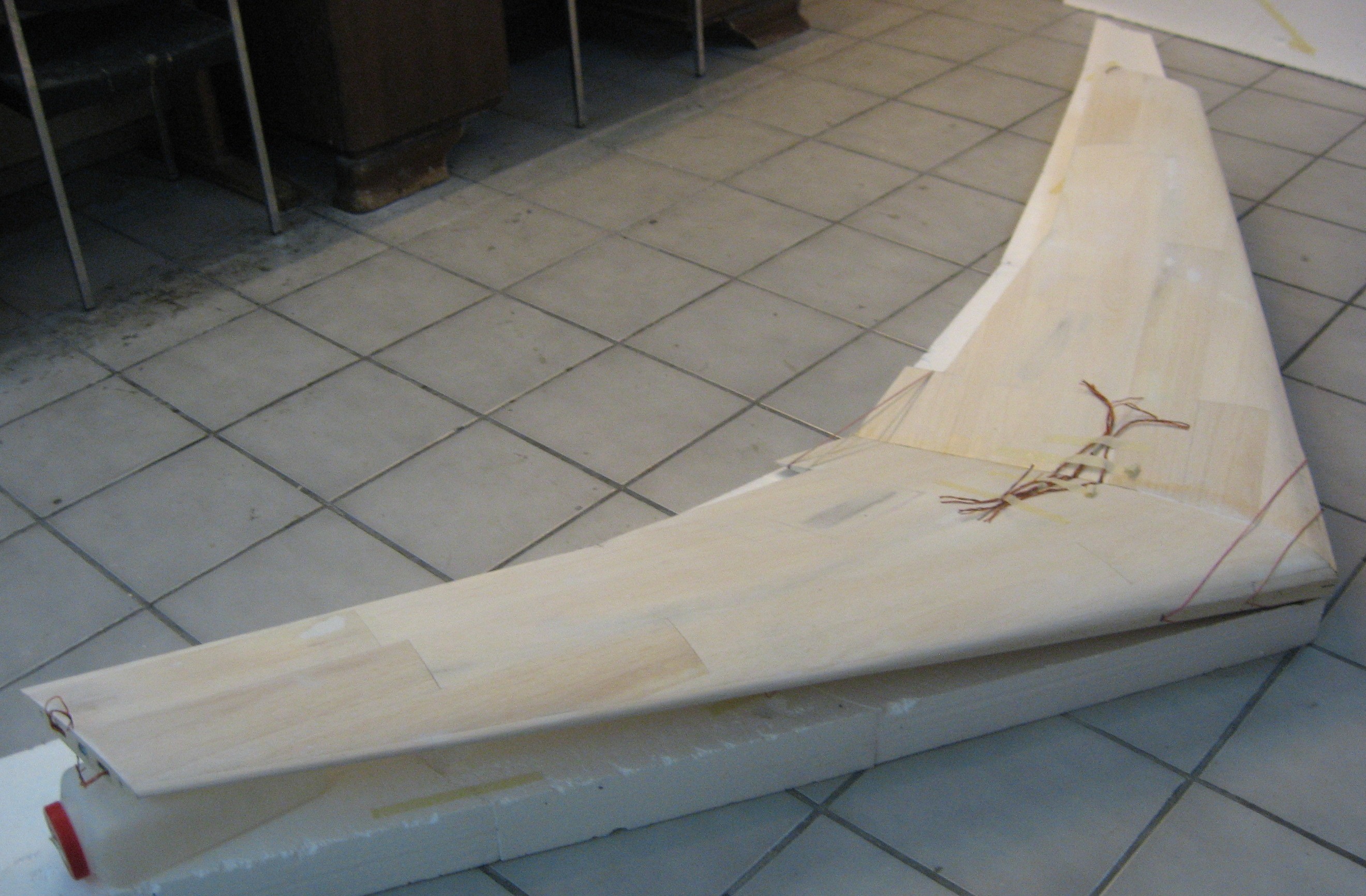

Flügel fertig zur Endmontage
Wing ready for final assembly
